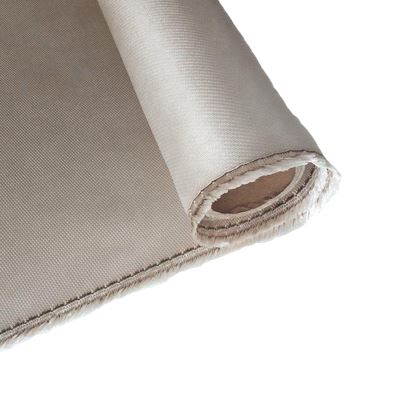

High Silica Cloth

Product Introduction

High Silica Fabrics can be used for a long period of time without changing their properties at the temperature 1000℃. As it contains more than 96% silica

Properties
No asbestos or ceramic, no harm to human body
Low thermal or conductivity, excellent thermal insulation, high resistance to thermal shock
Superb electric insulation
Inert to majority of chemical reagents
Good flexibility

Application
Aerospace, Nuclear,
Ship building, Machinery industry,
Refinery,
Metallurgy, auto industry

Specification

Item No	Weave	Weight (g/m2)	Width (cm)	Thickness (mm)	Warp *Weft yarns/cm	SiO2 %
HS-300	Twill 3*1	300±30	92±1	0.35±0.05	18.5±2 *12.5±2	≥96
HS-500	Satin 8HS	500±30	92±1	0.6±0.05	18±2*13±2	≥96
HS-600	Satin 8HS	600±30	92±1，100±1	0.7±0.05	18±2*13±2	≥96
HS-880	Satin 12HS	880±40	92±1	1.0±0.05	18±2*13±2	≥96
HS-1100	Satin 12HS	1150±50	92±1，100±1	1.3±0.1	18±1*13±1	≥96
HS-600-S	Satin 8HS	650±30	84-86	0.7±0.05	18±2*13±2	≥96
HS-1100-S	Satin 12HS	1250±50	84-86	1.3±0.1	18±1*13±1	≥96
