Fiberglass Fabric

THE PLACE: Home > Fiberglass Fabric

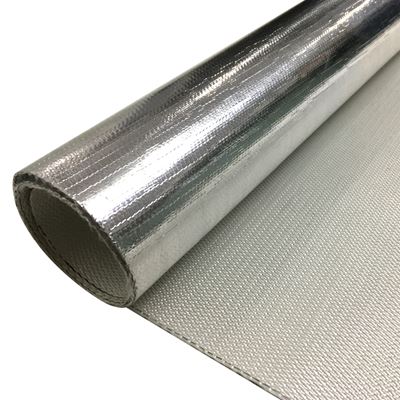

Aluminum foil coated fiberglass cloth
Product Description

 By applying uniquely advanced compound processing and using fiberglass as the base cloth and special fire-resistant adhesive agent, our product has the excellent properties such as the smooth surface on the aluminum foil, strong light reflection, good stretching resistance in length and breadth, non-breath ability, non-breath ability, non-water permeability, good hermetic and weather resistance.

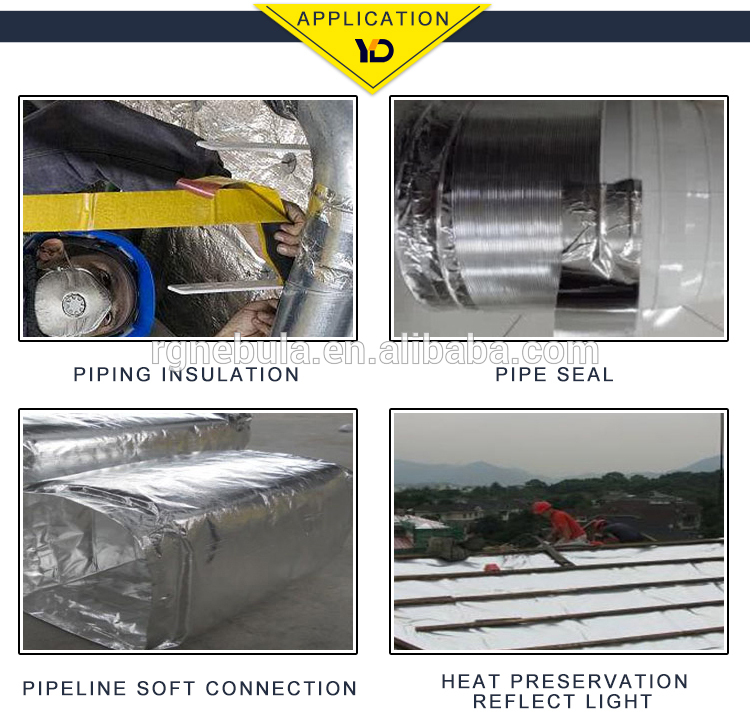

Application

 This cloth is mainly used for thermal insulating materials of the steam heating pipelines, sound -proof materials in construction and the protective layer of super glass wool with excellent functions of fire-resistance, anti-corrosion, heat isolation and sound absorbability, and it can also be used as the packing materials for the export equipment with the functions of damp proof, mildew proof, fire -existence and anticorrosion.
In the field, this cloth can mainly used for wrapping materials of oil transportation pipelines and the steam pipelines in the petrochemical industry with the same effects as mentioned above.



Features



l  Aluminum backing provides excellent reflection of both heat and light

l  Low moisture vapor transmission rate

l  Service Temperature range from -20 to +80ºC (-4 to +176ºF).fireproof material





Specification



Style

Warp density

End/cm

Weft density

End/cm

Thickness

(mm)

Weight

(g/m2)

Weave

Width

(mm)

Tensile strength

N/50x200mm

Length per roll

(m/roll)

ALCTX600

8±1

6±1

0.8±0.08

600±60

Plain

1000

1360X850

30-50

ALCTX650

8±1

4.4±0.5

1.0±10.1

650±65

Plain

1000

1530X930

30-50

ALCTX1000

5.6±1

3.2±0.5

1.5±0.15

1000±100

Plain

1000

1870X1700

30

ALCTX1400

5.6±1

2.5±0.5

2.0±0.2

1400±140

Plain

1000

3650X1950

30

ALCTX2000

5.0±1

1.7±0.2

3.0±0.2

1800±180

Plain

1000

4900X2050

30

ALETX600

8±1

6±1

0.8±0.08

600±60

Plain

1000

1600X1000

30-50

ALETX650

8±1

4.4±0.5

1.0±10.1

650±65

Plain

1000

1800X1100

30-50

ALETX1000

5.6±1

3.2±0.5

1.5±0.15

1000±100

Plain

1000

2200X2100

30

ALETX1400

5.6±1

2.5±0.5

2.0±0.2

1400±140

Plain

1000

4300X2300

30
